How to Measure a Boat Seat Pedestal for Replacement Without Ordering the Wrong Fit

The replacement pedestal looked almost identical to the old one. Then the seat sat higher than expected, the slider touched the console, and only two deck holes lined up. To avoid that result, do not measure only the pedestal post. Preserve the seating position first, identify every connection in the system, and measure the deck base before choosing a replacement.

This guide gives you a practical measurement process for replacing a boat seat pedestal. It also helps you decide whether you can replace one component or whether a matched pedestal system is the better option.

Before You Remove Anything, Preserve the Current Setup

If the current position is comfortable, your first job is to preserve it. Put the seat in its normal operating position and sit as you would while steering or fishing. Check your view over the console, your reach to the wheel and throttle, your foot position, and the space needed to stand up.

Before loosening any hardware:

1. Photograph the complete seat from the front and side.
2. Photograph the seat bottom, swivel, slider, pedestal post, and deck base.
3. Mark the front of the seat and base with removable tape.
4. Record whether the seat swivels, slides, adjusts in height, or disconnects.
5. Write down which components you plan to keep.

If the current position is uncomfortable, do not copy the old pedestal height. Use the next section to establish a better target position before comparing products.

Step 1: Measure the Seating Position You Want to Keep

Boat seat height can mean different things on different product pages. Record three separate measurements so that you can compare like with like.

Measurement A: Deck to compressed cushion top

Measure vertically from the finished deck surface beside the base to the top of the seat cushion while the normal operator is seated. This is the current finished seat height. It captures the real seating position, including cushion compression.

Measurement B: Deck to the seat mounting surface

Measure from the deck to the underside of the seat where the mounting hardware connects. This is the installed height of the support system below the seat. It may include a pedestal, swivel, slider, shock component, or adapter plate.

Measurement C: Seat height above its mounting surface

Measure from the seat's mounting surface to the top of the cushion under normal sitting load. This matters when the replacement seat is thicker or thinner than the original.

You can use these measurements as a planning check:

Target support-system height = target finished seat height - actual seat height

This is not a substitute for a product drawing. A manufacturer may measure pedestal height from different reference points. Compare your measurement with the exact start and end points shown for the product.

Check the position, not just the number

Dry-fit the seat at the proposed height before ordering or drilling. Check:

• Forward visibility in a normal seated posture
• Comfortable reach to the steering wheel and throttle
• Knee, foot, and leg clearance
• Room to stand and enter the walkway
• Full swivel clearance
• Fore-and-aft slide clearance

Step 2: Identify What Is Actually Under the Seat

A boat seat pedestal is often a system, not one part. Read your installation from top to bottom:

1. Seat: Adds its own height and has a specific mounting pattern.
2. Seat mount: Connects the seat to the movement or support components.
3. Swivel: Allows rotation and adds thickness to the stack.
4. Slider: Provides fore-and-aft travel and also adds installed height.
5. Shock component: May add height and require a specific interface.
6. Pedestal post: Provides most of the support height.
7. Deck base: Transfers the seat load into the boat structure.

Circle the components your boat actually uses. Adding, removing, or changing one layer can alter the finished height, hole pattern, movement, and clearance. This is why ordering from the old post height alone often fails.

Step 3: Measure the Four Connections That Determine Fit

Do not write down only the outside plate size. Measure the hole pattern at every connection. For round holes, measure from the center of one hole to the center of the next. For slots, record the usable minimum and maximum range.

Connection 1: Seat to mount

Record the number of holes, side-to-side spacing, front-to-back spacing, fastener size if confirmed, and whether the seat uses holes or slots. Also mark which edge faces forward.

Connection 2: Mount to slider or swivel

If a separate slider or swivel is installed, measure both of its interfaces. The upper pattern may fit the seat while the lower pattern does not fit the pedestal.

Connection 3: Pedestal post to deck base

Identify whether the post is inserted, pinned, clamped, threaded, or permanently joined to the base. Measure the actual post or pin diameter. Do not assume that two systems using a similar label will connect securely.

Connection 4: Deck base to boat

Record the base diameter or length and width, hole count, center-to-center hole locations, center opening, and installation orientation. Check whether you can inspect and access the area below the deck.

A dimension such as 7 inches by 7 inches, 5 inches by 5 inches, or a 3/4-inch pin describes only part of a system. It does not prove that the complete assembly fits.

What Should You Replace: One Part or the Complete System?

Can You Reuse the Existing Deck Holes?

Matching outside dimensions are not enough. Existing deck holes should enter a reuse evaluation only when all of the following are true:

• The new and old hole locations match center to center.
• The base orientation and load path remain appropriate.
• The holes are not enlarged, cracked, corroded, or loose.
• The mounting surface shows no softness, separation, or suspected water damage.
• The structure and access below the deck suit the specified fastening method.
• The pedestal and boat instructions allow the proposed installation.

If the hole pattern differs, or if the deck condition is uncertain, do not force the new base to match. The correct repair and fastening method depends on the boat construction and the pedestal instructions. A qualified marine installer should evaluate cored, damaged, inaccessible, or otherwise uncertain mounting areas.

Match Your Measurements to a Marinexplore Pedestal

Use your measurements to narrow the function first. Then verify the current product dimensions before ordering. The examples below reflect different configurations, not universal compatibility.

I need height adjustment without fore-and-aft movement

The 13-inch to 18-inch adjustable pedestal and the 17-inch to 24-inch version provide adjustable height and swivel movement. The current 13-inch to 18-inch model lists a 9-inch base and a 5-inch by 5-inch seat pattern. Confirm both interfaces and the installed height for your seat.

I need height adjustment and fore-and-aft movement

The 13-inch to 18-inch adjustable pedestal with slide combines height adjustment, swivel movement, and a listed 7-inch slide. A taller 17-inch to 24-inch version is also available. Include the complete slider assembly when checking height and clearance.

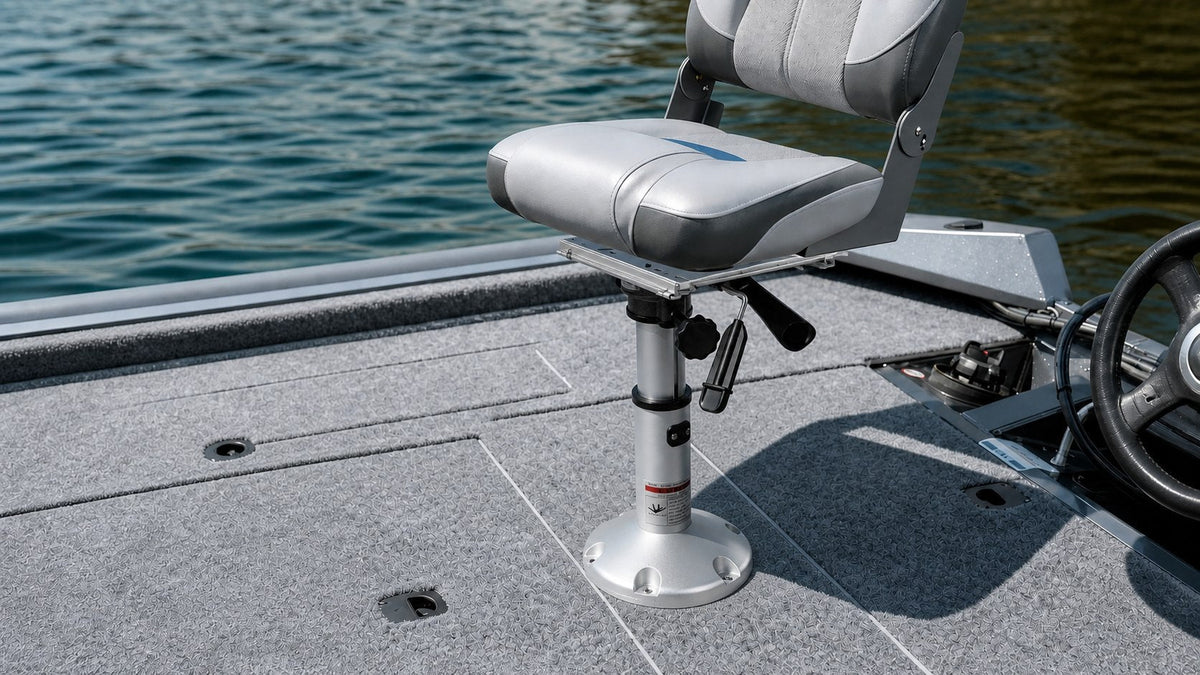

I want gas-assisted height adjustment and a slide

The 14-inch to 20-inch gas-lift pedestal with slide lists a 9-inch base, a 13-inch by 7-inch sliding track, and 6 inches of slide travel. A 17-inch to 24-inch version is available for a higher adjustment range. Check lever access, slide clearance, and the seat interface.

I need only a base, swivel, slider, or pin mount

Measure both adjoining interfaces before choosing an individual component. Marinexplore currently carries a 7-inch by 7-inch deck base for a specific pin system, a swivel with a listed 4.75-inch to 6.1-inch hole range, a slider with a listed 5.2-inch by 5.2-inch pattern, and separate 3/4-inch pin mounts. Similar dimensions do not make these parts interchangeable with every seat or pedestal.

Use the Marinexplore boat seat pedestal collection to compare the current configurations. If you are still deciding which movement features you need, read our boat seat pedestal selection guide.

When Should You Ignore the Old Pedestal Height?

Start over from the target seating position when:

• The replacement seat has a different cushion or shell height.
• You are adding or removing a slider, swivel, adapter, or shock component.
• You are switching between fixed, manually adjustable, and gas-lift systems.
• The post or deck-base connection is changing.
• The old seat blocked visibility or made the controls hard to reach.
• The old pedestal is bent, seized, loose, or incorrectly installed.

Boat Seat Pedestal Measurement Worksheet

Complete this worksheet before comparing products:

Final 60-Second Check Before Ordering

• I measured more than the pedestal post.
• I recorded hole spacing center to center.
• I checked every connection in the seat system.
• I included the slider, swivel, and adapters in the installed height.
• I checked steering, throttle, leg, rotation, and slide clearance.
• I did not assume that similar-looking systems are compatible.
• I inspected the existing holes and mounting surface.

Frequently Asked Questions

How is boat seat pedestal height measured?

First check how the product manufacturer defines pedestal height. For replacement planning, record both the deck-to-seat mounting height and the finished height from the deck to the compressed cushion top. These two measurements help you separate the pedestal system from the seat itself.

Are boat seat pedestal mounting holes universal?

No. Common sizes exist, but seats, swivels, sliders, posts, and deck bases can use different patterns and interface ranges. Measure each connection and compare it with the exact product drawing.

Can I reuse the existing deck holes?

Possibly, but only after confirming that the new hole locations and orientation match and that the existing holes and surrounding deck remain structurally sound. If the holes are enlarged or the deck condition is uncertain, stop and obtain installation guidance for that boat structure.

Does a boat seat slider increase the finished seat height?

A separate slider adds its own thickness between the seat and pedestal, so it can raise the finished seat position. Measure the actual slider or use its product drawing when calculating the complete stack.

Can I mix pedestal components from different brands?

Only when every relevant dimension, interface, rating, and installation requirement has been verified. A familiar label such as 3/4-inch pin or 7-inch plate is not enough by itself to prove compatibility.

Should I replace only the post or the complete pedestal system?

Replacing one component may make sense when the remaining parts are in good condition and every interface can be confirmed. If the old system is unidentified, worn at several connections, or being changed to add movement, a matched assembly can reduce compatibility guesswork.

What should I send Marinexplore if I need help?

Send clear photos of the complete seat, seat bottom, movement components, post connection, and deck base. Include the completed worksheet and identify which parts you want to retain. This gives the support team more useful information than a single pedestal-height measurement.

Measure the System, Then Choose the Pedestal

A successful replacement starts with the seating position and works downward through every connection. Preserve a comfortable setup, measure the full stack, record each interface, and inspect the mounting area before selecting a product. Once those measurements are complete, compare the current Marinexplore boat seat pedestal options or contact us with your photos and worksheet.
